MN2-6-M-B05C-1-4-D 2130X000X00 Gefran Vietnam | DienCN247
1. Giới thiệu MN2-6-M-B05C-1-4-D 2130X000X00 Gefran

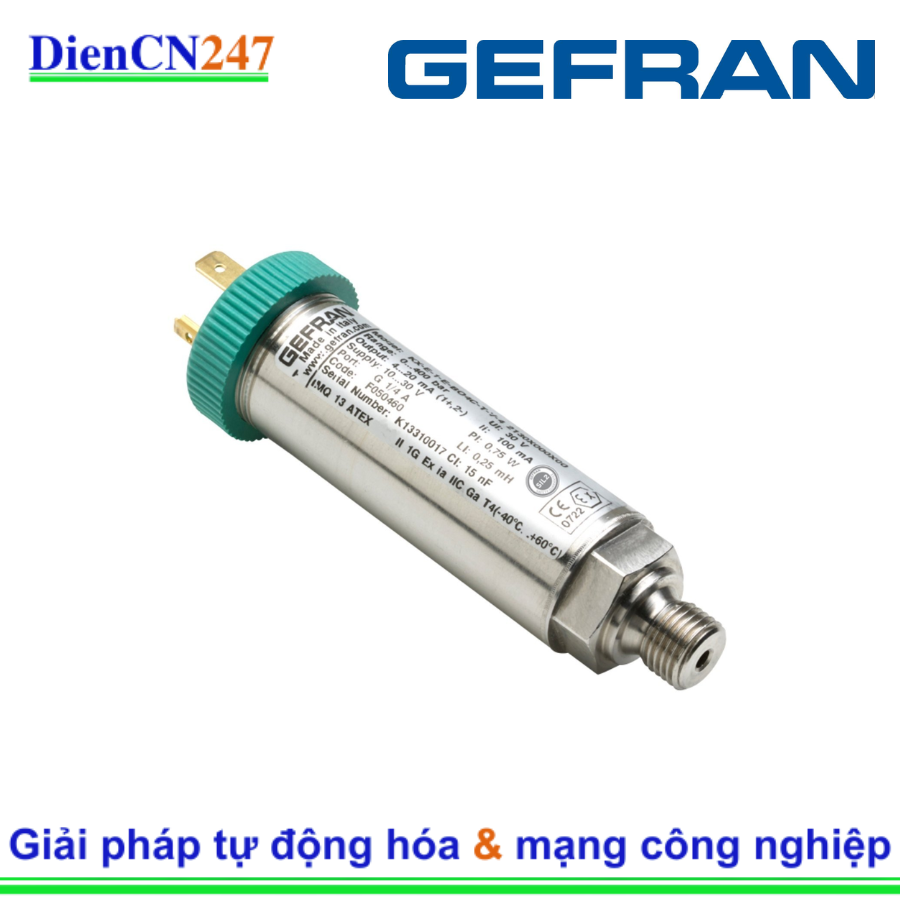

Cảm biến áp suất Gefran MN2-6-M-B05C-1-4-D 2130X000X00 là thiết bị đo lường cao cấp. Sản phẩm chuyên dùng cho môi trường nhiệt độ cao trong ngành công nghiệp nhựa. Thiết bị hoạt động theo nguyên lý truyền dẫn chất lỏng thủy ngân.
Dòng cảm biến này đảm bảo độ chính xác vượt trội khi vận hành. Thiết kế của máy đáp ứng tốt các tiêu chuẩn an toàn quốc tế. Đây là giải pháp tối ưu cho hệ thống đùn ép polyme.
2. Đặc trưng
- Thiết kế dạng thanh cứng kết hợp với dây mềm giúp lắp đặt linh hoạt.
- Màng ngăn bằng thép không gỉ phủ lớp mạ đặc biệt tăng độ bền.
- Khả năng chịu nhiệt độ cao tại đầu xử lý lên đến 400°C.
- Tín hiệu đầu ra chuẩn công nghiệp có độ ổn định cực cao.
- Tích hợp chức năng tự chuẩn hóa giúp tiết kiệm thời gian vận hành.
- Khả năng chống mài mòn và chống ăn mòn cơ học tuyệt vời.
3. Thông số kỹ thuật
- Dải đo áp suất rộng từ 0 đến 500 bar.
- Tín hiệu đầu ra dòng điện tiêu chuẩn 4-20mA hai dây.
- Nguồn cấp điện hoạt động ổn định trong khoảng 10-30 Vdc.
- Sai số tuyến tính đạt mức rất thấp dưới 0.25% FSO.
- Độ ren kết nối cơ khí tiêu chuẩn 1/2-20 UNF.
- Tiêu chuẩn bảo vệ vỏ ngoài đạt mức IP65 chống bụi nước.
4. Ứng dụng
- Kiểm soát áp suất nóng chảy trong máy đùn nhựa công nghiệp.
- Giám sát quy trình sản xuất sợi tổng hợp và polyme cao cấp.
- Ứng dụng trong dây chuyền sản xuất bao bì và màng bọc.
- Sử dụng trong hệ thống chế tạo hạt nhựa tái sinh.
- Đo lường áp suất tại các nhà máy ép phun áp lực cao.
